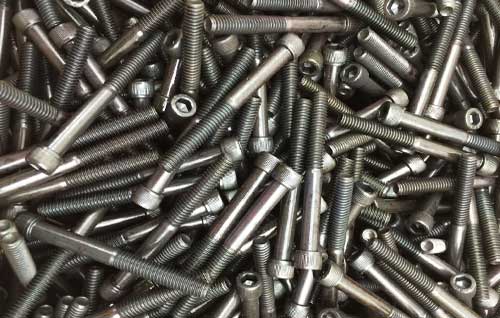

Aluminium Socket Head Cap Screws

Product Abstract

• Socket Head Cap Screws Size Metric : M6 To M120
• ASME Standard : ANSI B18.3
• Threads : Full and Fine Threads
• Manufacturing Process : Cold & Hot Forging
• Washer Imperial Size : 1/4" to 4"
• Material Origin: German, Indian, European
• Hole Type : Cylindrical with Hex Drive Hole
• Suitable For : Furnitures
• MTC: EN 10204/3.1B
• RFQ:contact@pipingmaterial.sa

Aluminium Socket Head Cap Screws American and European Standard

• ASME B18 2.1
• WNR 3.3547/ 3.4365
• UNS A96061/ A96082
• DIN 976
• ISO 4017
• DIN 835
• BS 4882
• DIN 2510

Find Genuine Suppliers of Aluminum 6061 Socket Cap Screws in Saudi Arabia

Aluminium Socket Head Cap Screws Specification

Aluminum Socket Head Cap Screw Head Type

• Hex, Flat, Square, Button Head

Aluminium Cap Head Screws Drive Types

• Socket Hex, Torx, 6-Spline

Length of Aluminum Button Head Cap Screws

• 3 MM to 160 MM

Aluminum Button Head Screws ISO Standard

• ISO 4762

DIN Standard for Aluminium Cap Screws

• DIN 7984, DIN 912

Aluminium Cap Head Screws Benefit

• Lighter Weight

Surface Finishes of Aluminum Socket Screws

• Polished, Plain, Bright Zinc

Aluminum Pan Head Screws Application

• Aerospace
• Robotics
• Moveable Cabinetry

Services for Aluminium Tapered Socket Cap Screws

• Head Shank Drilling & Head Painting

Aluminum Socket Set Screws Suitable Environment

• Saltwater Environment

Packaging of Aluminum Socket Head Cap Screw

• Carton Box
• Bubble Wraps, Custom
• Wooden Boxes

Aluminium Cap Head Screws Testing

• Hardness Test
• Proof Load Test
• Ferritiscope Test

Online Platform of UNS A96082 Button Head Cap Screws Stockists in Middle East With Different Sizes

Types of Aluminium Socket Head Cap Screws

Find Aluminium Socket Head Cap Screws Traders in Saudi Arabia offering expertly designed products.

Aluminium Allen Head Screws

Aluminium 6061 Socket Head Screws

UNS A92024 Pan Head Socket Screw

WNR 3.3547 Hex Head Socket Screw

Aluminium A95083 Flanged Socket Head Cap Screw

UNS A96082 Ultra Low Profile Socket Head Screw

AW-6082 Tamper Resistant Socket Head Cap Screws

WNR 3.2315 Aluminium Small Head Socket Cap Screw

5083 Aluminium Fully Threaded Socket Head Cap Screws

Ai 6061 Socket Head Shoulder Screw

7075 Aluminium Button Head Hex Socket Cap Screw

UNS A 97075 Aluminium Tapered Socket Head Cap Screw

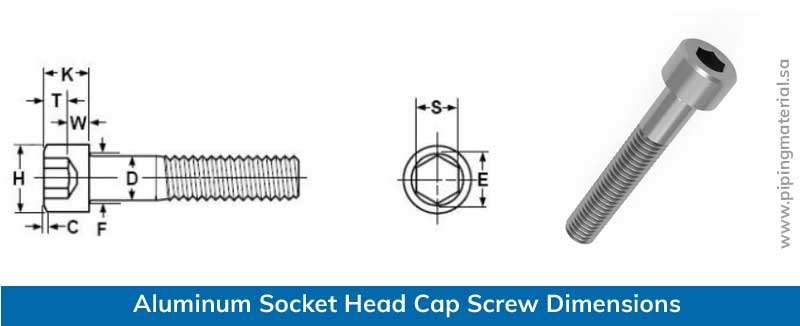

Aluminum Socket Head Cap Screw Dimensions Chart

Diameter of Screw	Thread Pitch	S		D		K		E	W	H		C	F	T
		Socket Size Across the Flats		Body Diameter		Head Height		Socket Size Across the Corners	Wall Thick- ness	Head Diameter		Top Chamfer or Radius	Fillet Transition Diameter	Key Engage- ment
		Max	Min	Max	Min	Max	Min	Min	Min	Max	Min	Max	Max	Min
M24	3	19.275	19.065	24	23.67	24	23.48	21.73	10.4	36.39	35.61	2.4	26.4	12
M64	6	46.33	46.08	64	63.54	64	63.26	52.53	22	96.54	95.46	6.4	71	38
M48	5	36.33	36.08	48	47.61	48	47.38	41.13	17.5	72.46	71.54	4.8	52.6	28
M36	4	27.275	27.065	36	35.61	36	35.38	30.85	15.3	54.46	53.54	3.6	39.4	19
M16	2	14.142	14.032	16	15.73	16	15.57	16	6.8	24.33	23.67	1.6	17.7	8
M10	1.5	8.115	8.025	10	9.78	10	9.64	9.15	4	16.27	15.73	1	11.2	5
M6	1	5.084	5.020	6	5.82	6	5.7	5.72	2.3	10.22	9.78	0.6	6.8	3
M4	0.7	3.071	3.020	4	3.82	4	3.82	3.44	1.4	7.22	6.78	0.4	4.7	2
M2.5	0.45	2.045	2.020	2.50	2.36	2.50	2.36	2.3	0.85	4.68	4.32	0.25	3.1	1.1
M1.6	0.35	1.545	1.520	1.60	1.46	1.60	1.46	1.73	0.55	3.14	2.86	0.16	2	0.7
M56	5.5	41.33	41.08	56	55.54	56	55.26	46.83	19	84.54	83.46	5.6	63	34
M42	4.5	32.33	32.08	42	41.61	42	41.38	36.57	16.3	63.46	62.54	4.2	45.6	24
M30	3.5	22.275	22.065	30	29.67	30	29.48	25.15	13.1	45.39	44.61	3	33.4	15.5
M20	2.5	17.23	17.05	20	19.67	20	19.48	19.44	8.6	30.33	29.67	2	22.4	10
M12	1.75	10.115	10.025	12	11.73	12	11.57	11.43	4.8	18.27	17.73	1.2	13.7	6
M8	1.25	6.095	6.020	8	7.78	8	7.64	6.86	3.3	13.27	12.73	0.8	9.2	4
M5	0.8	4.084	4.020	5	4.82	5	4.82	4.58	1.9	8.72	8.28	0.5	5.7	2.5
M3	0.5	2.56	2.52	3	2.86	3	2.86	2.87	1.15	5.68	5.32	0.3	3.6	1.3
M2	0.4	1.545	1.520	2	1.86	2	1.86	1.73	0.55	3.98	3.62	0.2	2.6	1

Purchase EN 3.3547 Pan Head Screws for Automobile Parts and Aircraft

Check Ready Stock of Aluminum Button Head Cap Screws With Characteristics

View Aluminium Tapered Socket Cap screws in Various Head Styles and Dimensions

Socket Cap Screw Head Styles

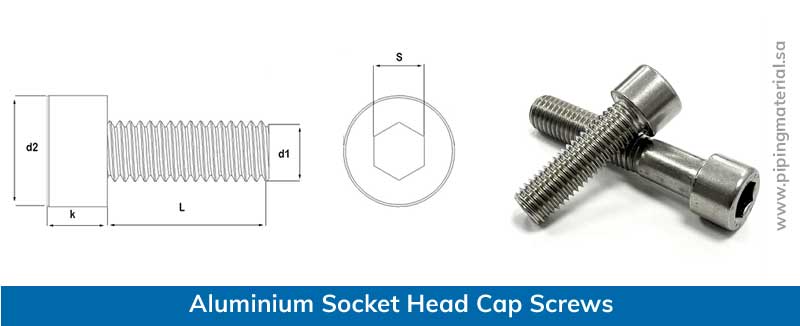

Aluminium Socket Head Cap Screws Dimensions

Suppliers of Aluminium Socket Head Cap Screws providing custom Sizes with superior material quality.

Metric Thread Diameter (d1)	k max. (mm)	d2 (mm)	T Min (mm)	Pitch (mm)	S (mm)	Available Lengths (L)
M5	5	8.50	2.50	0.80	4	5
M1.4	1.40	2.6	0.60	0.30	1.30	2
M1.8	-	-	-	0.35	-	3
M2.5	2.50	4.50	1.10	0.45	2	3
M3.5	3.50	6.0	1.60	0.60	2.50	5
M7	-	11	-	1	5	16
M10	10	16.0	5	1.50	8	8
M14	14	21	7	2	12	20
M18	18	27	9	2.50	14	20
M22	22	33	11	2.50	17	40
M27	27	40	13.50	3	19	30
M33	33	50	18	3.50	24	50
M1.6	1.60	3	0.70	0.35	1.50	3
M2	2	3.80	1	0.40	1.50	3
M3	3	5.50	1.30	0.50	2.50	3
M4	4	7	2	0.70	3	4
M6	6	10.0	3	1	5	5
M8	8	13.0	4	1.25	6	5
M12	12	18	6	1.75	10	8
M16	16	24	8	2	14	20
M20	20	30	10	2.50	17	20
M24	24	36	12	3	19	30
M30	30	45	15.50	3.50	22	20
