Allen Bolt
ر.س0.00

ASTMSpecification : ASTM A193, A1082, B408, F468, A307, B166, B425

ThreadThread : UNF, METRIC, BSF, UNC, BSW

TypeInstall or Remove Tool : Allen Wrench or Hex Key

Property ClassHead Types : Socket, Button, Round, Flat Head

LengthManufacturing Technique : Hot forging

DimensionsDimensions:ASME B18.2.1

rfqRFQ : contact@pipingmaterial.sa

Quantity
Add to wishlist
Share with friends
Description
Connect With Genuine Suppliers
Special Offers on Bulk Purchases
100% Quality Tested
With MTC EN 10204/3.1
On Time Delivery

Purchase Directly From Top Suppliers of Stainless Steel 304 Allen Screw in Saudi Arabia

Allen Bolt Specification

Buy From Genuine Allen Bolt Suppliers in Saudi Arabia Providing Various Size Options For Industrial Applications

SizeM1.2 to M12
ThreadsUNF, METRIC, BSF, UNC, BSW
OriginIndian, Janpanese, European, Korean
Also KnownAllen Screw
Neck TypeKnurled, Hex, Square Triangular
Surface TreatmentGalvanizing

ProcessCold Forging, Hot Forging, CNC machined
MaterialNickel Alloy, Stainless Steel, Duplex, Super Duplex, Carbon Steel, Alloy Steel
StandardsDIN 931, ISO 4014, ISO 4017, DIN 933
UsesMachine Tooling & Automotive
Price OfferPer Piece

Types Of Allen Bolt

Find Allen Bolt Suppliers in Saudi Arabia Offering Various Types With Third Party Inspection Reports

Allen Key Head Bolts

Allen Key Head Bolts

Socket Head Allen Bolt

Socket Head Allen Bolt

Button Head Allen Bolts

Button Head Allen Bolts

Allen Key Bolt

Allen Key Bolt

Allen Cap Bolt

Allen Cap Bolt

Round Head Allen Bolt

Round Head Allen Bolt

Allen Countersunk Bolt

Allen Countersunk Bolt

Full Thread Allen Bolt

Full Thread Allen Bolt

Check Dimensions and Compare Prices of ASTM A307 Carbon Steel Allen Key Bolt Stockists in Riyadh

Flat Head Allen Bolt Dimensions Chart

Diam of ScrewWall Thickness G MinDiam at Bearing Surface F Min – MaxDiam of Head A Min – MaxKey Engagement T MinHeight of Head H Min – MaxDiam of Body D Min – Max
M10.0250.075 – 0.0870.11 – 0.110.0250.070 – 0.0730.069 – 0.073
M20.0290.090 – 0.1020.13 – 0.140.0290.083 – 0.0860.082 – 0.086
M30.0340.102 – 0.1150.15 – 0.160.0340.095 – 0.0990.094 – 0.099
M40.0380.117 – 0.1300.17 – 0.180.0380.108 – 0.1120.107 – 0.112
M50.0430.132 – 0.1450.19 – 0.200.0430.121 – 0.1250.120 – 0.125
M60.0470.144 – 0.1580.21 – 0.220.0470.134 – 0.1380.132 – 0.138
M80.0560.172 – 0.1880.26 – 0.270.0560.159 – 0.1640.158 – 0.164
M100.0650.202 – 0.2180.30 – 0.310.0650.185 – 0.1900.184 – 0.190

Browse Various Material of Socket Head Allen Bolt with Proof Load Test at Dealer Prices

Allen Screw Material and Grades

View Verified Allen Bolt Suppliers in Saudi Arabia Who Offers Various Material and Grades at Low Cost

Stainless Steel Allen Bolt

Stainless Steel Allen Bolt

  • ASTM A193 B8, B8m, A2-70, A2-80
  • ASTM A453 Grade 660, A286
  • A4-70, A4-80, SS 304, SS 316
  • Stainless Steel 304L, 316L
  • 321H, 310, 347, 321, 347H, 317, 904L

Carbon Steel Allen Bolt

Carbon Steel Allen Bolt

  • ASTM A307 Grade A, B, C
  • ASTM A183
  • ASTM A563, A563M
  • ASTM F568M
  • Grades 4.6, 5.6, 8.8, 10.9, 6.8

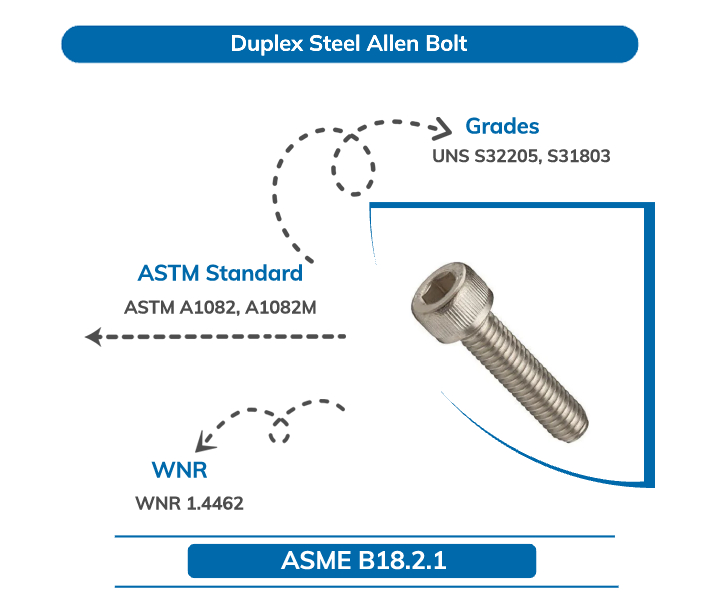

Duplex Steel Allen Bolt

Duplex Steel Allen Bolt

  • ASTM A1082, A1082M
  • ASTM A276, A1049
  • UNS S32205, S31803
  • ISO 4032
  • ISO 4033

Super Duplex Allen Bolt

Super Duplex Allen Bolt

  • ASTM A1049
  • ASTM A1082, A1082M
  • UN S32750, S32760
  • UNS S30815, S31254
  • UNS S32950

Inconel Allen Bolt

Inconel Allen Bolt

  • ASTM B408 Incoloy 800 (N08800)
  • ASTM F468 Inconel 625 (N06625)
  • ASTM B166 Inconel 600 (N06600)
  • ASTM B425 Incoloy 825 (N08825)
  • ASTM B166 Inconel 601 (N06601)

Hastelloy Allen Bolt

Hastelloy Allen Bolt

  • Hastelloy B3 (N10675)
  • ASTM B574 Hastelloy C22 ( N06022)
  • Hastelloy C276 (N10276)
  • ASTM F467 Hastelloy B2(N10665)
  • ASTM B435 Hastelloy X(N06002)

Nickel Alloy Allen Bolt

Nickel Alloy Allen Bolt

  • ASTM F2281 Nickel 201 (N02201)
  • ASME SF 2281 Nickel 200 (N02200)
  • ASTM B472 Alloy 20 (UNS N08020)

Monel Allen Bolt

Monel Allen Bolt

  • ASTM F467 Monel 500 (UNS N05500)
  • ASME SF 467 Monel 400 (N04400)
  • Monel 401(UNS N04401)

Copper Nickel Allen Bolt

Copper Nickel Allen Bolt

  • ASTM F468, ASME SF 468
  • Cupro Nickel 70/30(UNS C71500 )
  • Copper Nickel 90/10 (UNS C70600 )

Alloy Steel Allen Bolt

Alloy Steel Allen Bolt

  • ASTM A193 B7, B7M, B16, B5
  • ASTM A354
  • ASTM F3125, F3125M
  • ASTM A 320 L7M/L7
  • ASTM A194 Gr.2H/ 2HM/4

Copper Allen Bolt

Copper Allen Bolt

  • CDA 102, CDA 110, CDA 101
  • ASTM B865 C10100
  • UNS C10200, C10300
  • ASME SB 865 C12200
  • C10800, C12000

Brass Allen Bolt

Brass Allen Bolt

  • UNS C24000, C23000
  • ASTM F468 C27000, C26000
  • F468M C26200
  • C28000, C33000
  • C44300

Purchase Super Duplex 2507 Allen Hex Bolt Online With Button and Flat Head Drive Sizes in ISO 4762
Allen Screw Bolt Head Drive Sizes
DiameterDrive Size of Flat HeadDrive Size of Button Head
5/16″3/16″3/16″
7/16″1/4″1/4″
5/8″3/8″3/8″
7/8″9/16″–
1-1/8″3/4″–
1-3/8″7/8″–
1/4″5/32″5/32″
3/8″7/32″7/32″
1/2″5/16″5/16″
3/4″1/2″7/16″
1″5/8″–
1-1/4″7/8″–
1-1/2″1″–
Get Inconel 625 Full Thread Allen Bolt for Furniture Assemblies, Refer Weight Chart as per DIN 912
Allen Key Screw Weight Chart
LengthM6M12M5M8M20
20 mm6.532.1413.4–
40 mm1146.57.120.9150
60 mm15.463.4–28.9194
80 mm–80.2–37241
100 mm–98––291
120 mm–116––341
140 mm––––391
10 mm4.7–2.7––
30 mm8.339.35.616.9128
50 mm13.254.58.624.9172
70 mm–71.3–33216
90 mm–89.1––266
110 mm–107––316
130 mm––––366
150 mm––––416
Allen Bolt Recently Supplied in Following Locations
ProductProject NameLocation
Allen Key Head BoltsARABIAN FAL COMPANYHa’il, Saudi Arabia
Allen BoltPetro RabighRabigh, Saudi Arabia
Socket Head Allen BoltTayseer Al Sheikh ChemicalYanbu,Saudi Arabia
Full Thread Allen BoltFiyaco Factory JeddahJeddah, Saudi Arabia
